DESIGN OF A VESSEL IMPACT BAFFLE



With this method you may design vessel Impact Baffles :

  • Find the size :
    - Lenght .
    - Height.
    - Thickness.
    - Thickness with corrosion allowance.
    - Commercial Thickness (You may write it ).

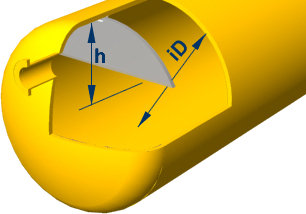

The impact Baffle shape is Semicircular .

Also you may obtain:
The minimum weld filled size: ( weld may be continuous in both sides of the semicircular periphery.)

Furthermore you can:
Check your impact baffle design changing any or some of the following parameters:
- Flow.
- Nozzle diameter.
- Internal diameter of the tank.
- Baffle height.
- Material (Stress).
- Corrosion allowance.

Exit data sheet is as follows :

To introduce the variables, you must fill in a format as follows:

INPUT FOR CALCULATION METHOD
VESSEL IMPACT BAFFLE DESIGN

By :


Company :
Date :
Client :
Reference : Case :

Flow (Q) :
Nozzle Diameter (id) :
Diameter (iD) :
Height of baffle (h) :
Specific gravity (S) :

Corrosion Allowance :
Allowable stress:


If you are sure press submit, if not refresh.
